Product information

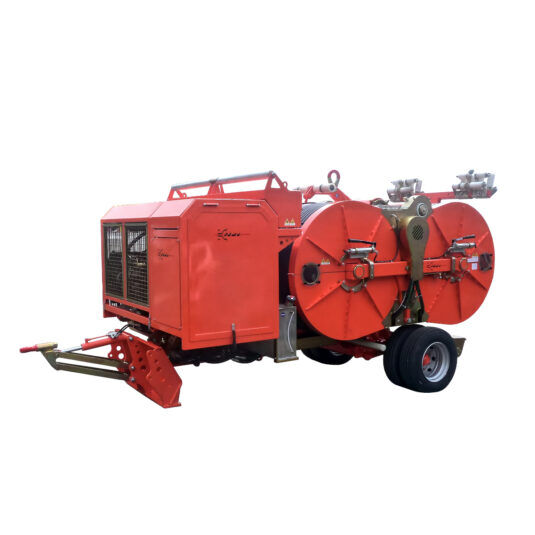

TEMA Italy's range of Hydraulic Puller-Tensioners are engineered and manufactured to withstand the harshest climates all around the world. With experience in the ice cold climates of Russia, the extreme heat in the Middle East and high humidity in the Amazon, these TEMA Puller-Tensioners are easy to use and maintain as most components used in manufacturing have alternatives available locally and the electric control system does away with PCB's in favour of relays and contactors ensuring a greater reliability in all climates.

Featuring four independent hydraulic circuits, this versatile puller-tensioner offers flexible capacity options—either 4 × 45 kN or 2 × 90 kN. Designed for single or simultaneous stringing of up to four bundled conductors, as well as OPGW cables, it ensures efficient and reliable cable installation in complex projects.

Features:

4 hydraulic circuits with negative brake system
Mechanical capstans coupling
4 dynamometers for direct readfing of pulling value with load-limiter devices (puller-mode)
4 counter-meter devices
4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic driven reel-stands or 1 reel-winder unit
Thermally treated steel adherence wheels
Gear box (2 speed) for 1 circuit
Remote control unit c/w console 5m cable
Hydraulic stabilisers
Rigid axle with tyres for towing up to 30km/h
Balanced top lifting point and anchoring attachments
