Product information

TEMA Italy's range of Hydraulic Puller-Tensioners are engineered and manufactured to withstand the harshest climates all around the world. With experience in the ice cold climates of Russia, the extreme heat in the Middle East and high humidity in the Amazon, these TEMA Puller-Tensioners are easy to use and maintain as most components used in manufacturing have alternatives available locally and the electric control system does away with PCB's in favour of relays and contactors ensuring a greater reliability in all climates.

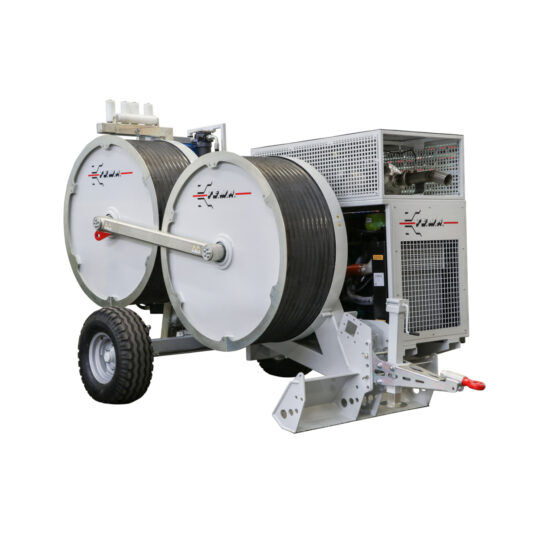

Engineered for precision and reliability, this hydraulic puller-tensioner delivers a powerful 100 kN capacity, ideal for efficient stringing of single or double conductors as well as OPGW cables. Perfectly suited for demanding cable installation operations.

Features:

1 hydraulic circuit with negative brake system
1 dynamometer for direct reading of pulling value with load-limiter device (puller-mode)
1 counter-meter device
2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic driven reel-stands or 1 reel-winder unit
Thermally treated steel adherence wheels
Gear box (2 speed)
Remote control unit c/w console 5 m cable
Hydraulic stabilizers
Rigid axle with tyres for towing up to 30 km/h
Balanced top lifting point and anchoring attachments
