Product information

NOVAX® Rubber Insulating Sleeves are manufactured to meet and exceed both ASTM D1051 and EN 60984 standards, which are the internationally recognized standards of Rubber Insulating Sleeves.
Manufactured using the environmentally friendly aqueous process, these dipped sleeves provide extra protection from the cuff of the Rubber Insulating Glove up to the shoulder of the user and serves as additional protection from accidental contact with energized equipment.

Features:

  • AC Maximum Use Voltage: 17,000V
  • AC Proof Test: 20,000V
  • DC Maximum Use Voltage: 25,500V
  • DC Proof Test: 50,000V
  • Style: Curved Elbow
  • Colors:  Single – Orange    or     Bi-color – Yellow over Red / Black over Yellow / Black over Orange

Every sleeve undergoes quality checked, rigorous visual inspection and electrically test prior to shipment. Additionally, each batch of sleeves is subjected to further series of destructive physical and electrical tests to ensure quality. All sleeves are stamped with test dates and a serial number which is unique to each individual piece, ensuring easy asset identification and recording of test dates.

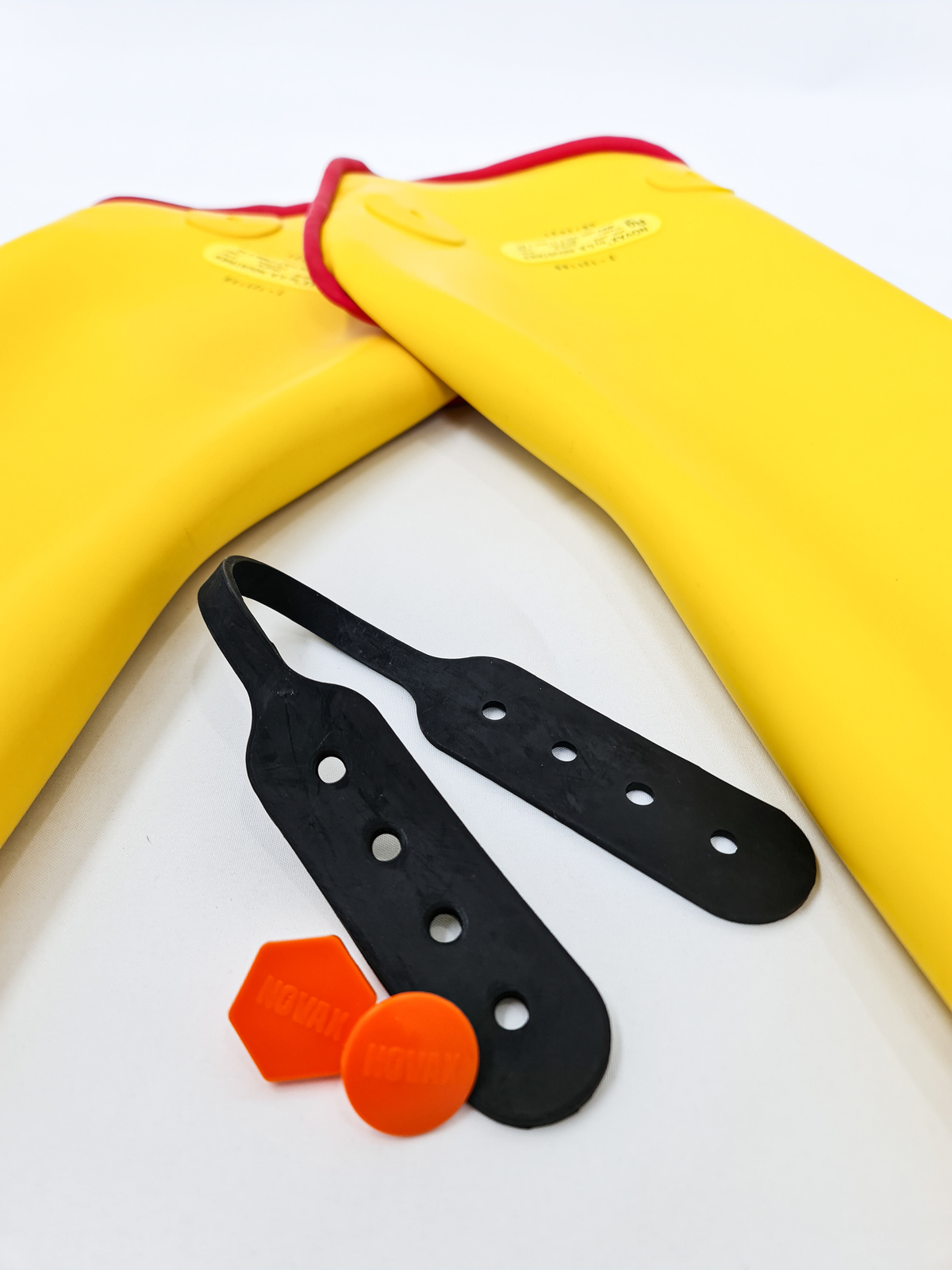

Amplitude has access to the full range of NOVAX® Rubber Insulating Dipped Sleeves from Classes 0 through to 3. All sleeves are sold with a pair of shoulder straps and attachment buttons.

Sizes A B C D
Small (SM) 616mm (24 ¼ in.) 384mm (15 ⅛ in.) 317mm (12 ½ in.) 146mm (5 ¾ in.)
Regular (RG) 673mm (26 ½ in.) 394mm (15 ½ in.) 311mm (12 ¼ in.) 146mm (5 ¾ in.)
Large (LG) 705mm (27 ¾ in.) 406mm (16 in.) 327mm (12 ⅞ in.) 175mm (6 ⅞ in.)
Extra Large (XLG) 749mm (29 ½ in.) 445mm (17 ½ in.) 327mm (12 ⅞ in.) 178mm (7 in.)
Tolerance ± 13mm (± ½ in.) Min.allowable length ±13mm (± ½ in.) ± 6mm (± ¼ in.)
