Product information

TEMA Italy's range of Hydraulic Puller-Tensioners are engineered and manufactured to withstand the harshest climates all around the world. With experience in the ice cold climates of Russia, the extreme heat in the Middle East and high humidity in the Amazon, these TEMA Puller-Tensioners are easy to use and maintain as most components used in manufacturing have alternatives available locally and the electric control system does away with PCB's in favour of relays and contactors ensuring a greater reliability in all climates.

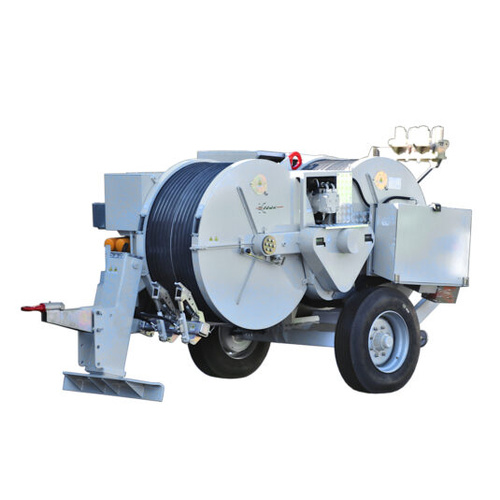

Engineered for performance and versatility, this advanced Hydraulic Puller-Tensioner features two independent hydraulic circuits, offering a combined or separate capacity of 2×50 kN or 1×100 kN. Perfectly suited for the stringing of up to two bundled conductors and OPGW cables, this unit adapts effortlessly to complex transmission line projects.

Features:

2 hydraulic circuits with negative brake system
Mechanical capstans coupling
2 dynamometers for direct reading of pulling value with load-limiter devices (puller-mode)
2 counter-meter devices
2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic driven reel-stands or 1 reel-winder unit
Thermally treated steel adherence wheels
Gear box (2 speed) for 1 circuit

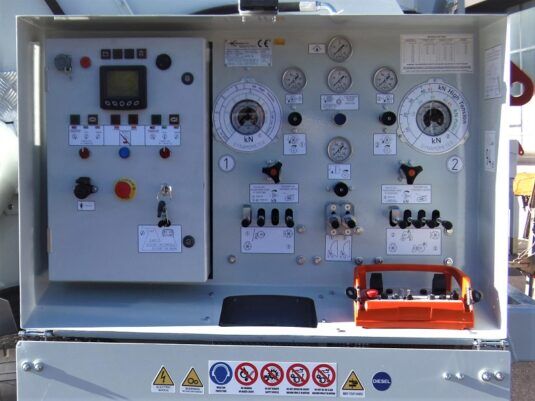

Remote control unit c/w console 5 m cable
Hydraulic stabilizers
Rigid axle with tyres for towing up to 30 km/h
Balanced top lifting point and anchoring attachments
