Product information

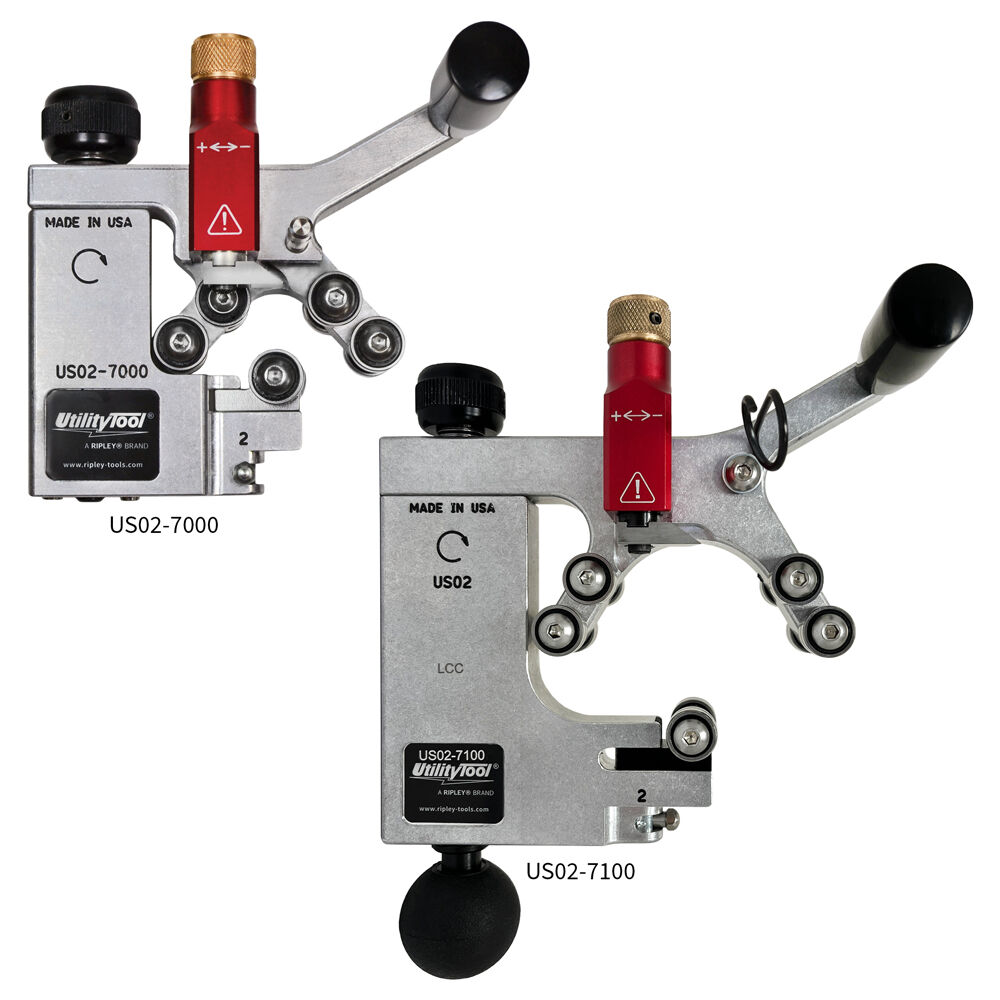

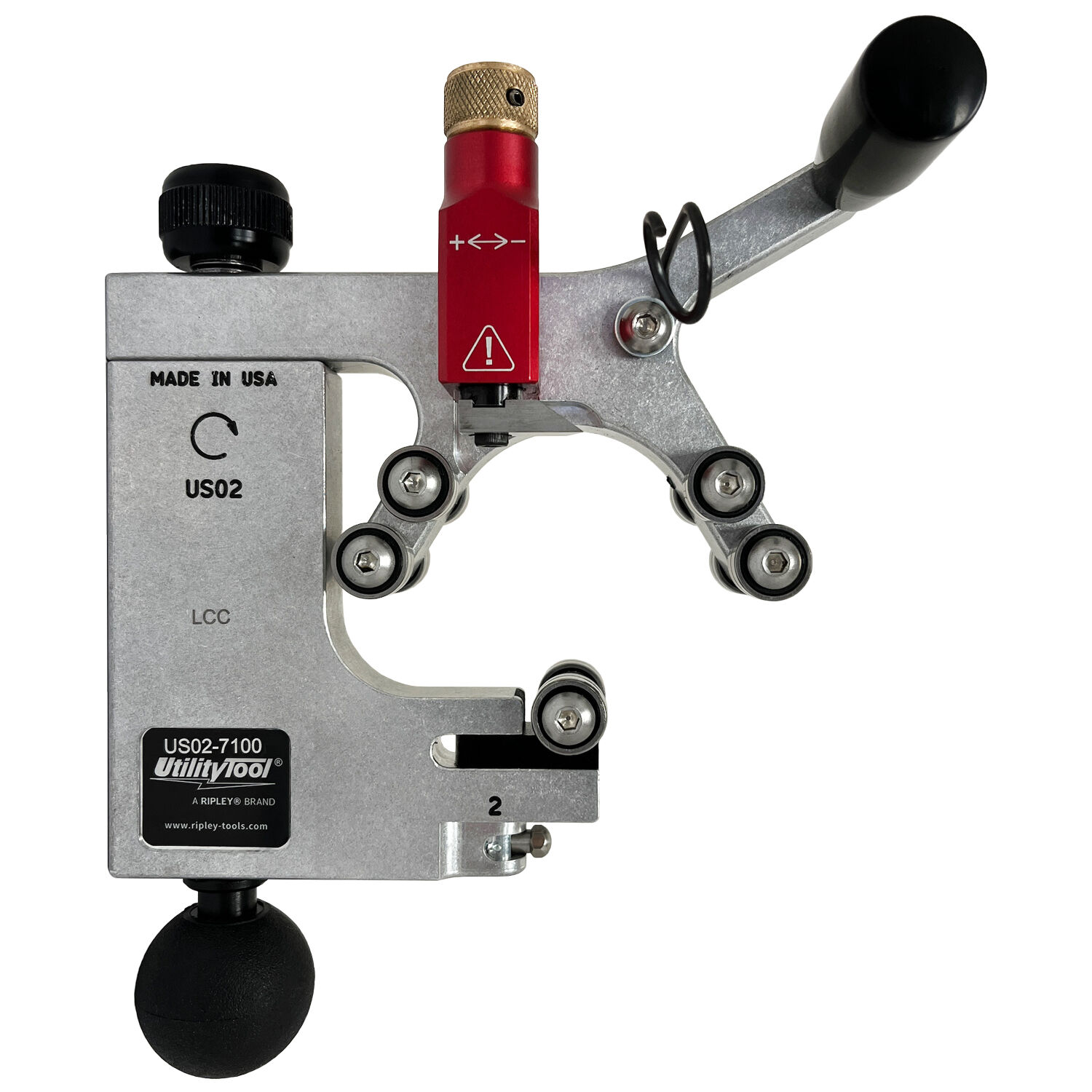

The Ripley US02 MAX is a high-precision shaving tool designed to safely remove bonded semi-con from medium and high voltage power cables with diameters from 2.17″ to 3.15″ (55 mm to 80 mm). Engineered for optimal performance and ease of use, the US02 MAX maintains a smooth insulation surface and applies a clean 12° chamfer, eliminating the need for further finishing.

Built with multiple stainless steel contact bearings, the tool provides unmatched stability throughout the shaving process, whether applied mid-span or at the cable end. Its compact, ergonomic design includes a revolving handle and accessible adjustment knobs that reduce operator fatigue and improve control.

Key Features

Shaves bonded semi-con on medium to high voltage cables
Compatible with cable diameters from 2.17″ to 3.15″ (55 to 80 mm)
Chamfers insulation edge at 12° for a clean finish
Removes semi-con within 1.96″ (50 mm) of the jacket on mid-span and end applications
Adjustable blade depth in 0.004″ (0.1 mm) increments
Accommodates semi-con thicknesses up to 0.095″ (2.4 mm)

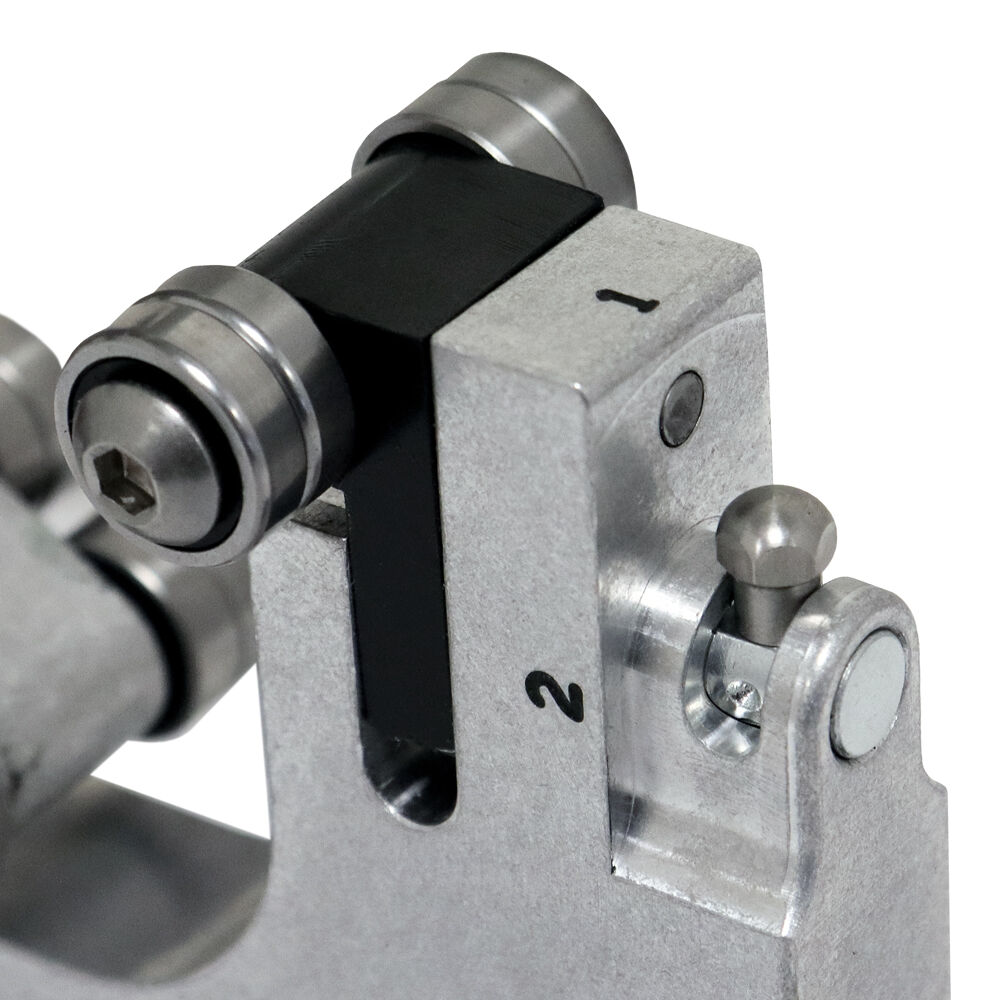

Two feed positions optimize tool setup for various cables
Stainless steel bearings ensure stability during operation
Ergonomic handle reduces strain from repetitive tasks
Supplied in a durable molded protective case
Replacement blade part #: US02-7501
