Transformer Partial Discharge Tester
Price On Application
Notify me when back in stock
Please tick this box to proceed.

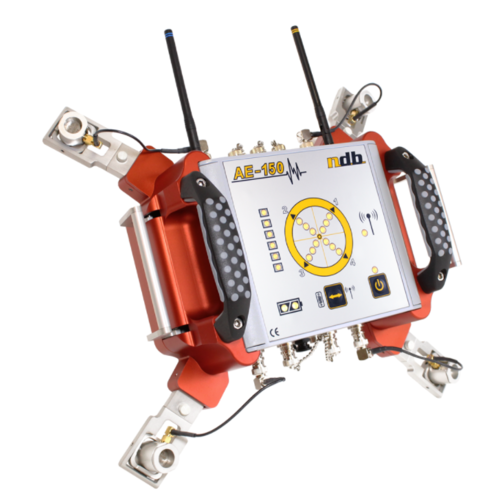

The AE-150™ was designed to perform partial discharge localization inside oil-filled transformers, following a dissolved gas analysis (DGA) revealing abnormal conditions. The AE-150™ is recognized around the world for its ease of use, comprehensible software, and
Dimensions / Weight 40 x 37 x 14 cm / 5.4 kg
Battery autonomy More than 8 hours
DC in voltage 12 to 15V, 5.2A
Operating Temperature Charging 0°C to 40°C (-4°F to 32°F)
Operating Temperature Not Charging -20°C to 55°C (-4°F to 133°F)
Storage Temperature -20°C to 55°C (-4°F to 133°F)
IP Rating Designed to meet IP66
Number of channels 4
Bandwidth 35 kHz to 300 kHz
Sampling frequency 3 MHz
Optional filtering High-pass 6th order at 100kHz
Amplitude resolution 12 bits
Dynamic range 120 dB
Input range 500 mVpp max
Sensitivity 6 μV
Number of channels 1
Bandwidth 5 MHz to 300 MHz
Sampling frequency 48 MHz
Input range 1 VRMS
Sensitivity 100 μVrms
Dynamic range 80 dB
