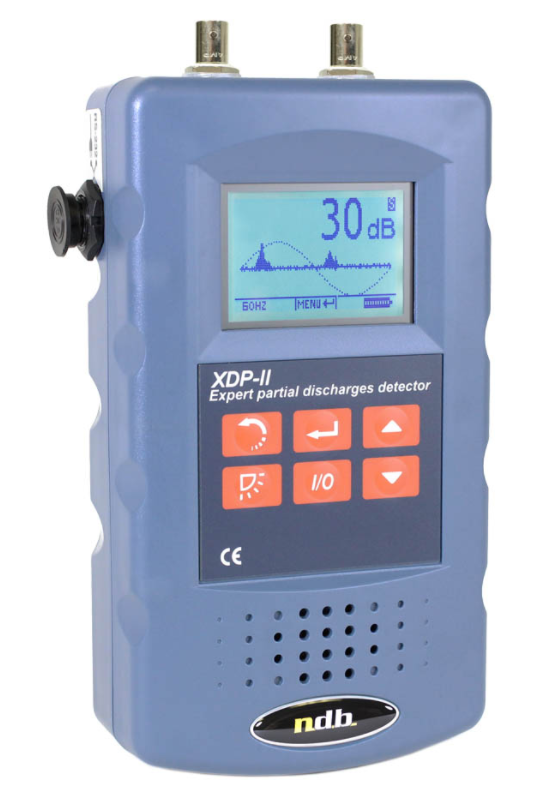

Expert On Line Partial Discharge Tester
Electricity Network PD Analysis Device
Price On Application
Notify me when back in stock
Please tick this box to proceed.
The XDP-II™ design allows for convenient online measurement and detection of partial discharge activity in MV and HV insulating materials targeting applications such as power
cable accessories, metal clad switchgear, power transformers, insulators, arresters, cable terminations and switches. When combining with our pico coulombs calibrator and PD coupler, the XDP-II™ now becomes an offline PD test system where pC measurements are made and saved to file.
Dynamic Range 60 dB
Data Storage Over 380 recordings
Accuracy ± 1 dB
Resolution 1 dB
Bandwidth 300 kHz to 70 MHz
Operating Phase Signal Range
(50 to 60Hz) 50 to 700mVrms
Sensitivity 5pC, depending on DUT capacitance
Clock Real-time internal clock
Auto shutdown After 30 minutes of inactivity
Operating Temperature -20 to 50°C (-4 to 122°F)
Storage Temperature -20 to 50°C (-4 to 122°F)
Charging Temperature 0 to 50°C (32 to 122°F)
Humidity 0 to 95% non-condensing
Liquid Protection Splash proof
Display High contrast backlit LCD screen
Autonomy 7.5 hours
Batteries NiMH, rechargeable
Charging 3 hours
Dimensions / Weight 203 x 114 x 51 mm / 860g
